DFV Coilover Kit for BMW M1 Coupe E82

The Öhlins Road & Track shock absorber kit is precision-engineered for the BMW Z4 G29 (2018–2025), delivering a suspension upgrade that blends uncompromising track performance with refined comfort for everyday driving. Drawing directly from Öhlins’ decades of motorsport experience, this system enhances the dynamic character of the G29, making it equally capable on winding roads and demanding circuits.

Developed to sharpen handling, increase traction, and inspire greater driver confidence, the Road & Track kit transforms the Z4 into a truly versatile sports car. The chassis becomes more responsive, predictable, and stable under pressure, while still offering a composed, compliant ride during daily use or long-distance journeys.

At the heart of the system is Öhlins’ exclusive Dual Flow Valve (DFV) technology, which enables quick adjustment of damper stiffness. With a simple turn of the signature golden knob, the suspension can be switched from comfort-oriented road settings to aggressive track-focused performance. This adjustment influences both low- and high-speed compression and rebound damping, ensuring improved agility, balance, and overall chassis control in every scenario.

For Z4 G29 owners, the Öhlins Road & Track coilover kit provides the perfect blend of motorsport engineering and everyday usability, ensuring the car remains comfortable on the road while unlocking its full potential on the track.

General Features:

• DFV technology (Dual Flow Valve)
• 1 way adjustment - 25 meaningful clicks of damper adjustment
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)

• 2 year warranty

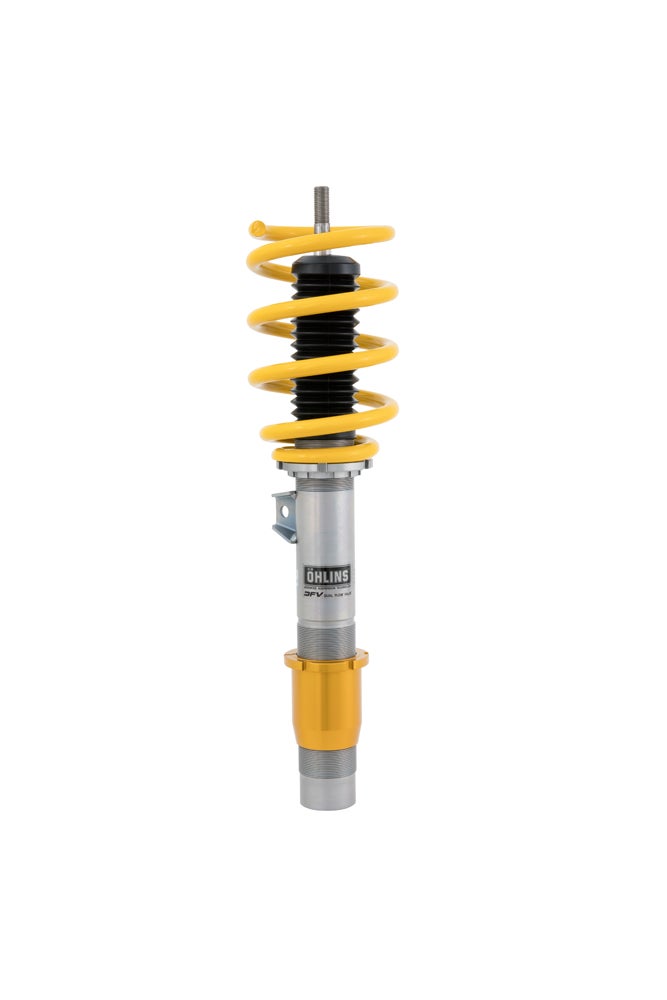

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 0 - 25 mm lower than the standard ride height on the recommended set up
• Spring rate 90 N/mm
• Uses original top mounts

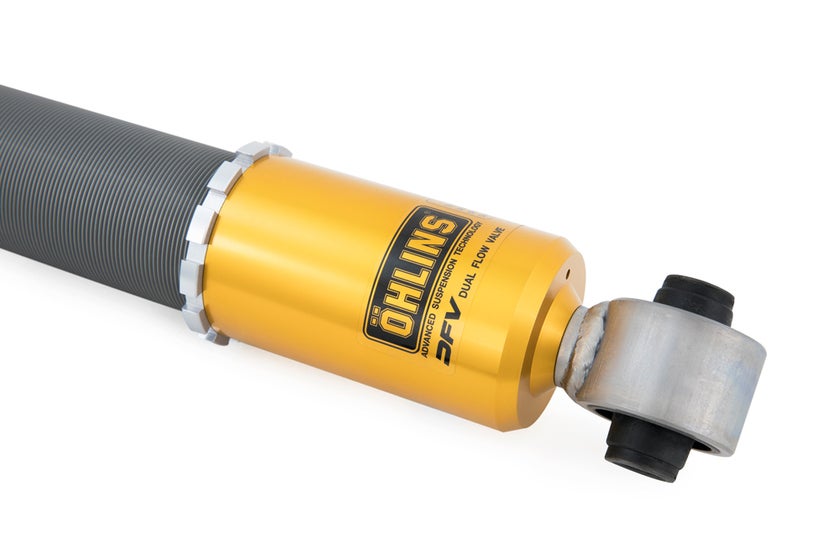

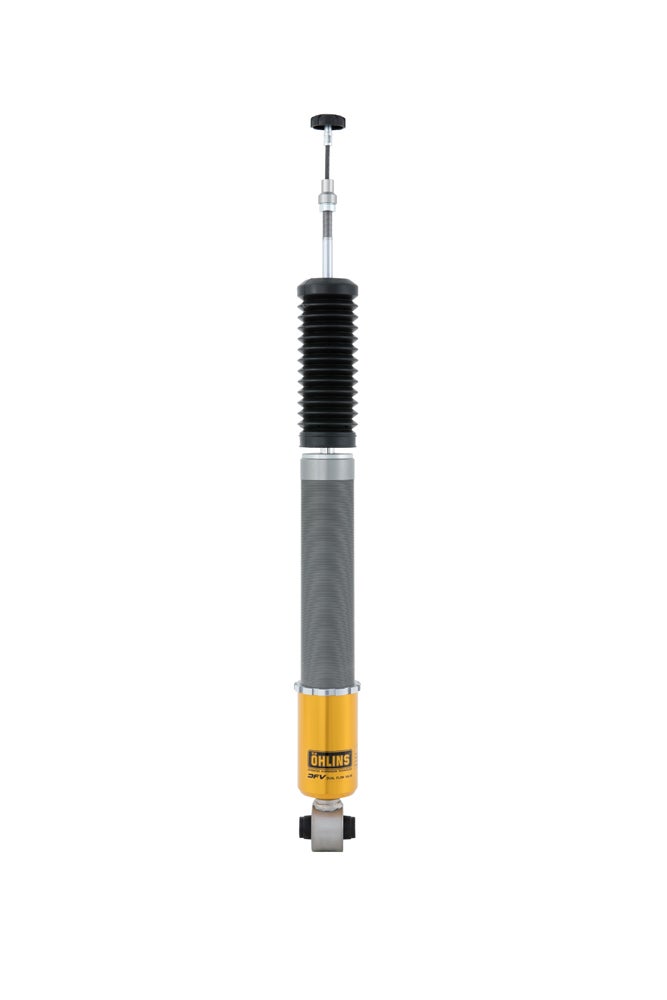

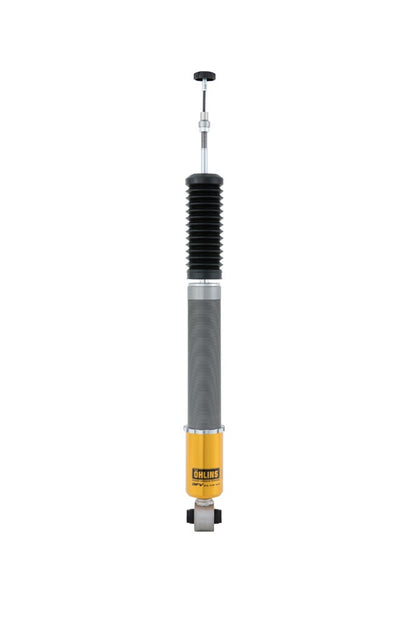

Features Rear:

• Aluminium monotube shock absorber

• Spring preload adjuster
• Separate damper length adjuster
• Approx. 0- 25 mm lower than the standard ride height on the recommended set up
• Spring rate 160 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

Additional Available Parts:

• Adjustable front top mounts that allow for greater control of camber set up
